Product Range

15 cable categories,
one trusted source.

A complete portfolio for building, industrial, and infrastructure applications every cable engineered in-house and tested to international standards.

15Categories
0.5-1000mm² range
HV/MV/LVVoltage classes
IEC·BS·ULStandards

Power & Building Cables

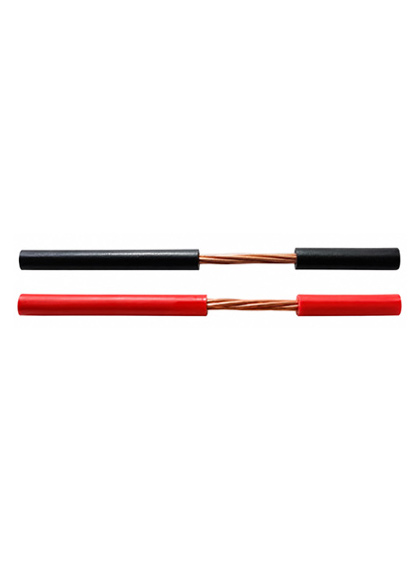

Low voltage building cablesPower & Building

Low Voltage Building Cables

The backbone of residential, commercial and industrial wiring — designed to safely transmit and distribute power for lighting, heating, appliances and machinery, indoors, outdoors, in conduit or buried.

Voltage
250/440 V & 450/750 V
Sizes
1 mm“ 70 mm²
Conductor
Solid / Stranded / Flexible Cu
Cores
Single & Multi-core
Insulation
PVC / XLPE
Standards
IEC 60502, BS 6004
Applications: House wiring · distribution boards · commercial fit-outs · panel wiring
IEC 60502BS 6004250/440 V

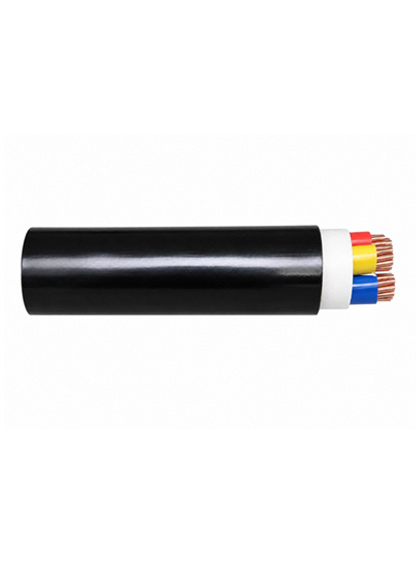

Power cables on a reelPower & Building

Power Cables

Heavy-duty cables engineered to transmit and distribute electrical power across utility, industrial and infrastructure networks rated for direct burial, underground conduit and overhead containment.

Voltage
0.6 / 1 kV
Sizes
up to 1000 mm²
Conductor
Copper / Aluminum
Cores
Single & Multi-core
Insulation
XLPE / PVC
Standards
IEC 60502-1/2
Applications: Distribution networks · substations · industrial plants · feeder lines
IEC 60502-1/20.6/1 kVup to 1000mm

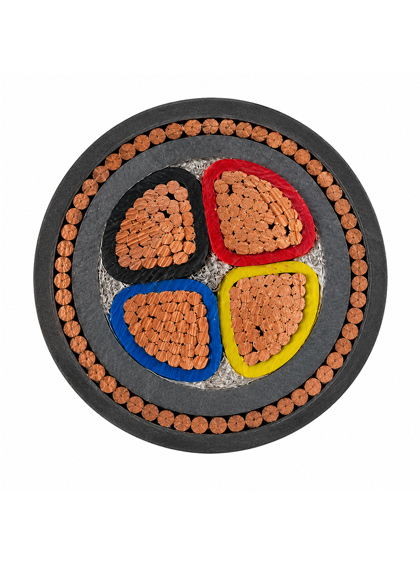

Armored cablePower & Building

Armored Cables

Mechanically protected cables shielded against impact, rodents and environmental damage — delivering durable, cost-efficient, easy-to-install power connectivity in the harshest conditions.

Armor
SWA · STA· AWA
Voltage
0.6 / 1 kV
Conductor
Copper / Aluminum
Cores
Single & Multi-core
Insulation
XLPE / PVC
Standards
BS 6724, IEC 60502
Applications: Direct burial · outdoor runs · mining · heavy industry
BS 6724IEC 60502SWA/STA/AWA

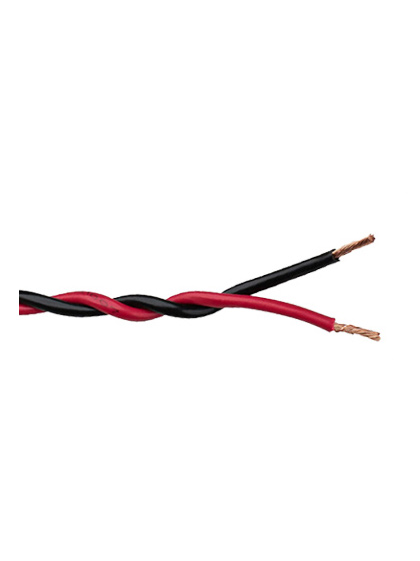

Flexible cablesPower & Building

Flexible Cables

Highly flexible low-voltage cables for applications requiring movement and easy routing power tools, appliances and portable equipment across residential, commercial and industrial settings.

Voltage
450 / 750 V
Sizes
0.5 mm² “ 1000 mm²
Conductor
Flexible / Stranded Cu
Cores
Single & Multi-core
Insulation
PVC / Rubber
Standards
BS 6500, BS 50525
Applications: Appliances · power tools · machinery leads · portable equipment
BS 6500BS 50525450/750 V

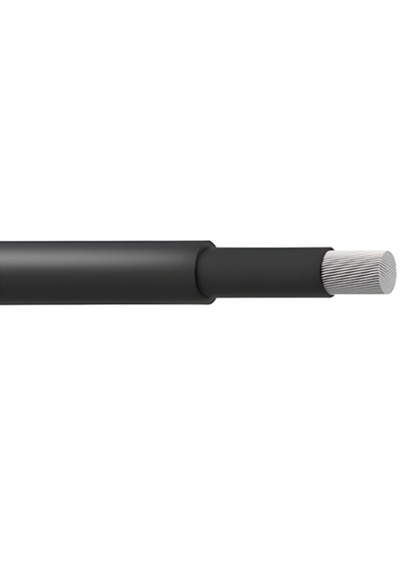

Aluminum conductor coilPower & Building

Rubber Grade Cables

Finely stranded copper conductors with EPR insulation and neoprene/rubber sheath. Excellent low-temperature flexibility. Used in mining, marine, and portable equipment.

Voltage
0.6 / 1 kV
Sizes
up to 1000 mm²
Conductor
Aluminum (Cu option)
Cores
Single & Multi-core
Insulation
XLPE / PVC
Standards
IEC 60245
Applications: Overhead lines · service drops · utility distribution
IEC 60502Aluminumup to 1000mm

Specialty Cables

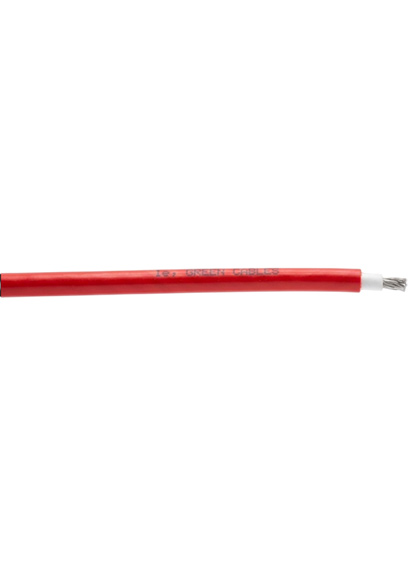

Solar cable installationSpecialty

Solar Cables

UV-resistant, weatherproof PV cables engineered for decades of outdoor exposure connecting panels, strings and inverters in solar arrays of every scale.

Type
Twin / Triple-layer PV
Conductor
Tinned Copper
Temp. Range
40 °C to +120 °C
Rating
1.5 kV DC
Jacket
XLPO, UV-stable
Standards
BS EN 50618, IEC 62930
Applications: Rooftop & ground-mount PV · string & array wiring · inverter links
BS EN 50618IEC 629301.5 kV DC

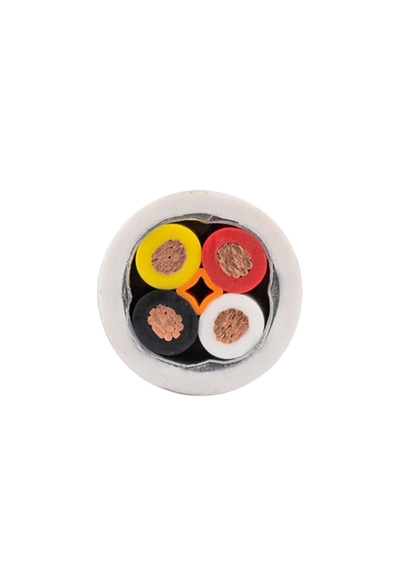

LSZH fire-retardant cablesSpecialty

LSZH Fire-Retardant & Resistant

Low-Smoke Zero-Halogen cables for environments where smoke and toxic fumes endanger lives minimizing emissions and maintaining circuit integrity during a fire.

Cores
Single & Multi-core
Operating Temp
up to 90 °C
Short-Circuit
up to 250 °C
Flame
IEC 60332-1
Halogen
IEC 60754-1 (zero)
Smoke
IEC 61034-2 (low)
Applications: Hospitals· airports · tunnels · metros · high-occupancy buildings
IEC 60332-1IEC 60754-1IEC 61034-2

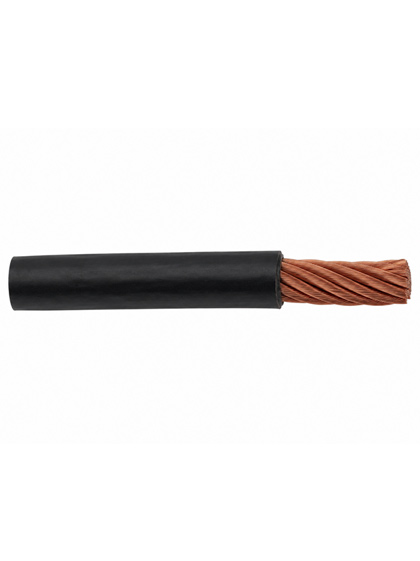

Rubber and welding cablesSpecialty

Rubber & Welding Cables

Tough, highly flexible rubber-insulated cables built to withstand abrasion, oil and repeated flexing ideal for welding sets, mining and mobile heavy equipment.

Voltage
450 / 750 V
Conductor
Fine-stranded Cu
Insulation
EPR / Rubber
Jacket
Heavy-duty rubber
Feature
Oil & abrasion resistant
Standards
BS EN 50525, IEC 60245
Applications: Welding plant · mining · cranes · mobile machinery
BS EN 50525IEC 60245Heavy-duty

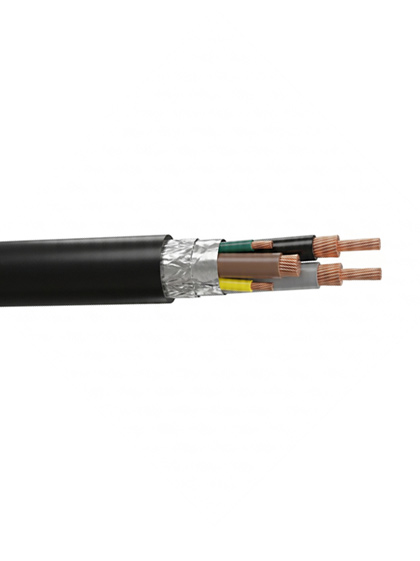

VFD shielded drive cablesSpecialty

VFD / Drive Cables

Shielded variable-frequency-drive cables engineered to suppress EMI and withstand the high-voltage spikes of modern motor drives protecting both drive and motor.

Type
Drive-rated, shielded
Shield
Foil + braided screen
Conductor
Stranded Cu (+ ground)
Insulation
XLPE
Feature
Low-capacitance, EMI control
Standards
IEC / NFPA compliant
Applications: VFD-to-motor runs · pumps · HVAC · automation drives
ShieldedDrive-ratedEMI control

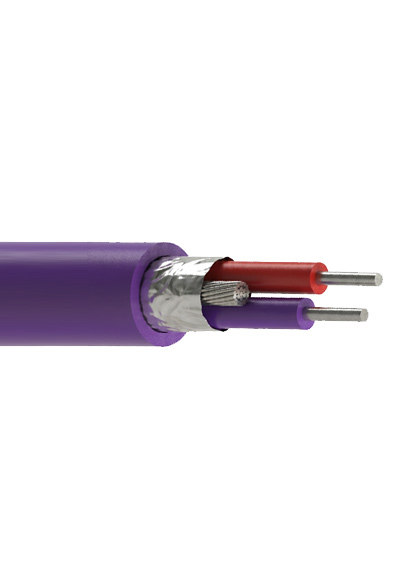

Thermocouple cablesSpecialty

Thermocouple Cables

Precision color-coded extension and compensating cables that carry accurate temperature signals from sensor to instrument across demanding process environments.

Types
Type K · J · T
Construction
Pair / Multi-pair
Shield
Individual / overall screen
Insulation
PVC / PTFE / Glass-fibre
Accuracy
Class 1 / Class 2
Standards
IEC 60584-3
Applications: Process temperature monitoring · furnaces · kilns · instrumentation loops
IEC 60584-3Type K/J/TShielded

Data & Control Cables

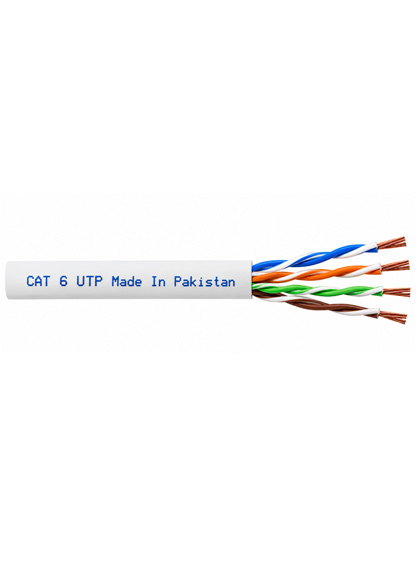

Networking ethernet cablesData & Control

Networking / Industrial Ethernet

High-integrity twisted-pair data cables engineered for industrial settings — with dual-layer shielding for superior EMI protection and maximum data throughput.

Categories
Cat 5e · Cat 6 · Cat 7
Shielding
UTP · STP · SFTP
Conductor
High-purity twisted Cu
Insulation
HDPE, PVC / LSZH jacket
Shield
Foil + braided screen
Standards
TIA/ANSI 568
Applications: Data centres · factory networks · building management · CCTV
TIA/ANSI 568Cat 5e/6/7STP/UTP/SFTP

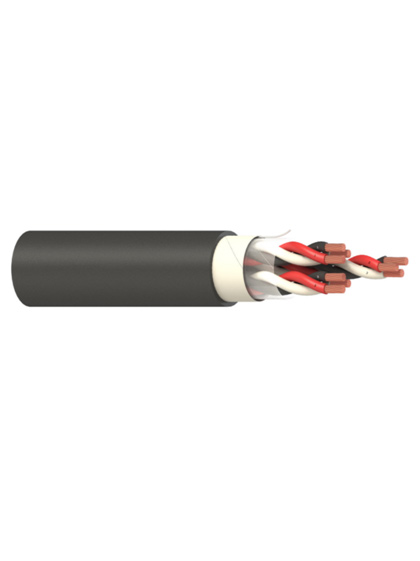

Instrumentation cablesData & Control

Instrumentation Cables

Screened signal cables that protect low-level process signals from interference available in single-pair through multi-triad configurations for the most complex plants.

Config
Pair · Triad · Multi-pair
Conductor
Annealed / Tinned Flexible Cu
Shield
ISCR · OSCR (foil/braid)
Armor
SWA option
Insulation
PE / PVC / LSZH
Standards
BS 5308 Pt 1 & 2
Applications: Process control · oil & gas · SCADA · sensor & transmitter loops
BS 5308ISCR/OSCRSWA option

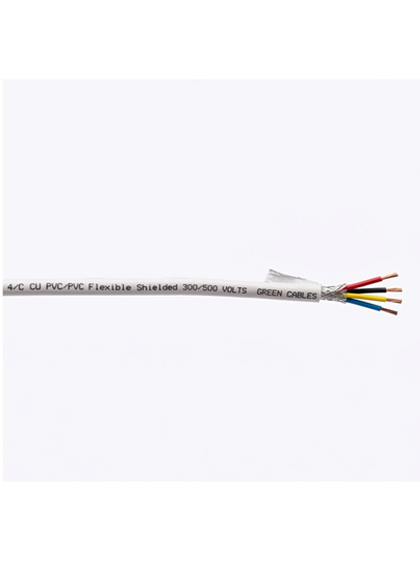

Multi-core control cablesData & Control

Control Cables

Multi-core cables that carry control and command signals between switchgear, PLCs and field devices with optional screening and armor for noisy, exposed environments.

Cores
Multi-core (2 - 61+)
Shield
OSCR overall screen
Armor
STA option
Conductor
Stranded Cu
Insulation
PVC / XLPE / LSZH
Standards
IEC 60227, BS 6346
Applications: Switchgear & control panels · automation · motor control centres
IEC 60227OSCRSTA option

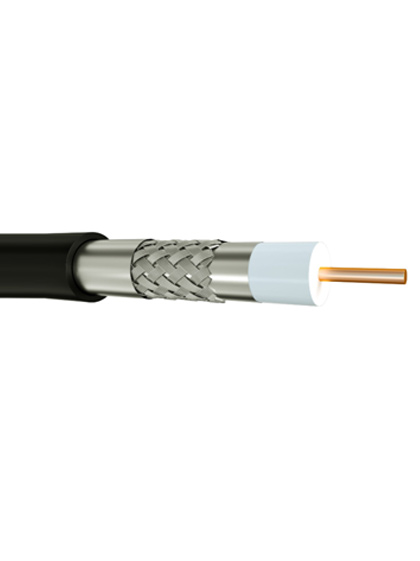

RF coaxial cablesData & Control

RF Coaxial Cables

Precision-impedance coaxial cables for radio-frequency and broadband signal transmission engineered for low loss and stable performance across the band.

Types
RG-6 · RG-7 · RG-11
Impedance
50 / 75 Ω
Conductor
Solid / CCS Cu
Shield
Foil + braid
Dielectric
Foam PE
Standards
MIL / IEC 61196
Applications: CATV & broadband · antenna feeds · CCTV · RF instrumentation
IEC 61196RG-6/7/1150/75 ©

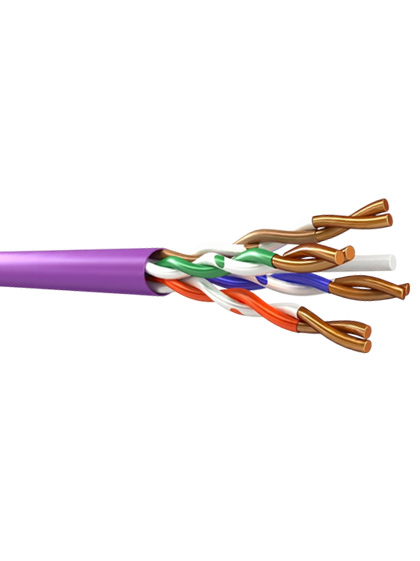

Telecom cablesData & Control

Telecom Cables

Multi-pair telephone and signalling cables for indoor and outdoor distribution built for clear voice and data transmission across campus and building networks.

Config
Multi-pair (2 - 100+ pr)
Conductor
Annealed Copper
Use
Indoor / Outdoor
Shield
Aluminium tape (outdoor)
Insulation
PE / PVC
Standards
IEC / TIA
Applications: Voice distribution · campus backbones · access networks
IECTIAMulti-pair
Solar field

Need a custom cable specification?

Our engineering team designs bespoke solutions from the ground up — tailored to your standards, sector and environment.
