Multi Cores - Armoured Cables

Electric Cables → Low Voltage → Multi Cores - Armoured

Multi Cores Armoured
 Send Enquiry

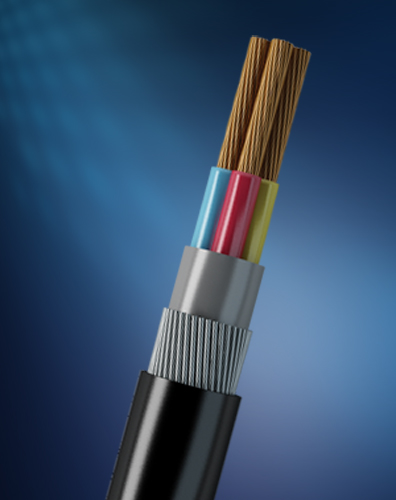

Multi Cores - Armoured

Conductor Type Copper/Aluminium
Conductor Construction Soft Annealed Stranded Conductor as per IEC 60228
Description CU/XLPE/SWA or STA/PVC or CU/PVC/SWA or STA/PVC or AL/XLPE/STA or SWA/PVC or AL/PVC/SWA or STA/PVC
Rated voltage 0.6/1 (1.2)KV, 1.8/3 (3.6)KV
Sizes Up to 630 Sq. mm
Standard IEC 60502-1
Insulation XLPE/PVC/LSHF/EPR
Bedding PVC/LSHF
Armoring Steel Tape or Galvanized Steel Wire Armor
Outer Jacket PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE. MDPE, HDPE)
Special Features

In Green Cables most up to date process machines of the best worldwide companies in the field are used that ensurs the best Quality Low Voltage Cables with a long operation life.

Low Voltage Cables can also be customized as per BS, SEC, ARAMCO, DEWA, ADEWA & other utilities specifications or customer’s special requirements with wide range of Armoring & Sheathing Options.

Fire Resistant cables can also be provided upon customer request.
