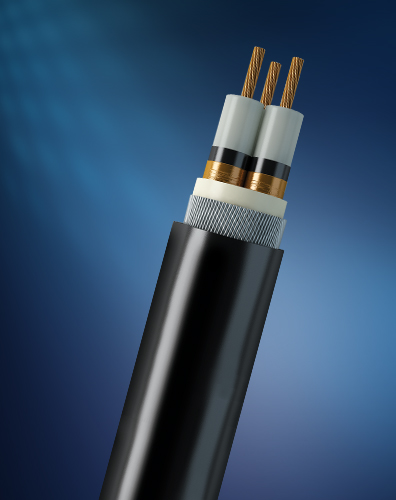

Electric Cables → Medium Voltage → Multi Cores - Armoured
|Conductor Construction||Circular Stranded Compacted as per IEC 60228|
|Description||CU/XLPE/SWA/PVC or CU/XLPE/STA/PVC or AL/XLPE/SWA/PVC or AL/XLPE/STA/PVC|
|Rated voltage||3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV|
|Sizes||Up to 630 Sq. mm|
|Metallic Screen||Copper Wires/Copper Tape|
|Armoring||Galvanized Steel Tape or Steel Wire Armored|
|Outer Jacket||PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE)|
In Green Cables most up to date process machines of the best worldwide companies in the field are used that ensurs the best Quality Low Voltage Cables with a long operation life.
Low Voltage Cables can also be customized as per BS, SEC, ARAMCO, DEWA, ADEWA & other utilities specifications or customer’s special requirements with wide range of Screening, Armoring & Sheathing Options.
Lead Sheathed Cables can also be provided to Oil, Gas and Petrochemicals Sector.
