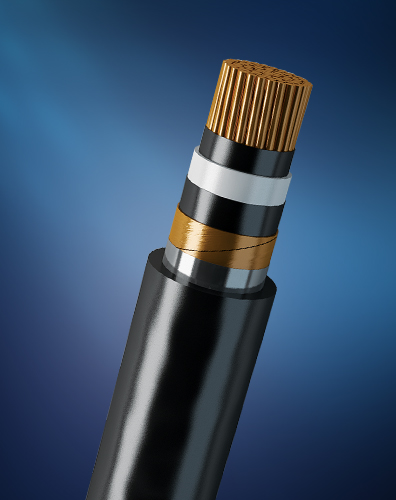

Electric Cables → Medium Voltage → Single Core - Unarmoured
Conductor Type | Copper/Aluminium |
---|---|
Conductor Construction | Circular Stranded Compacted as per IEC 60228 |
Description | CU/XLPE/PVC or AL/XLPE/PVC |
Rated voltage | 3.6/6 (7.2)KV, 6/10 (12)KV, 8.7/15 (17.5)KV, 12/20 (24)KV, 18/30 (36)KV |
Sizes | Up to 1000 Sq. mm |
Standard | IEC 60502-2 |
Metallic Screen | Copper Wires/Copper Tape |
Bedding | PVC compound/LSHF/PE |
Outer Jacket | PVC (WIth Flame, Oil, Sunlight, UV Resistance) /LSHF /PE (LLDPE, LDPE, MDPE, HDPE) |
Medium Voltage Cables can be customized as per BS, SEC, ARAMCO, DEWA, ADEWA & other utilities specifications or customer’s special requirements with wide range of Screening & Sheathing Options.
Lead Sheathed Cables can also be provided to Oil, Gas and Petrochemicals Sector.
